PRINCIPLES OF SEPARATION

Gas- Liquid Separation Fundamentals


Liquid separation from the gas phase can be
accomplished by any combination of the separation
mechanisms previously described.Souders-Brown Equation
for Gravity Settling .This equation can be simplified to
describe the liquid spherical droplet terminal velocity as a
function of the droplet diameter, and the drag coefficient.
The simplified form of the terminal velocity equation is

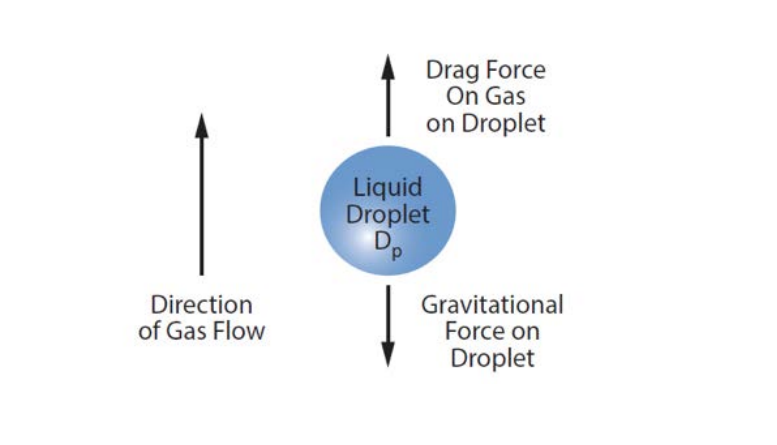

called the Souders-Brown Equation.The equation is valid for
vertical gas flow, where the drag due to upward gas flow
and the downward gravity force are in balance. The
equation is also frequently used to determine the downward
vertical terminal velocity of droplets in horizontal fluid flow,
even though this relationship is not as rigorous, especially at
higher fluid velocities.The Souders-Brown equation is used in
a number of ways to design equipment for gravity settling
in the oil and gas industry.
A target droplet capture diameter can be specified for a
gravity settling application, and then using the settling laws,
and fluid properties, a drag coefficient, K, and terminal
droplet velocity can be calculated, or determined by
empirical testing. The K-factor is also a function of separator
geometry, including settling space both upstream and
downstream of the mist eliminator.
Gas- Liquid Separation Fundamentals

Mist Eliminators for Gas Liquid Separations
Mechanism of Mist Carryover for Gas-Liquid Mist
Eliminator Devices — Mist eliminators are commonly used
in gas-liquid separation to aid gravity separation in the
removal of liquid so that more efficient, smaller separators
may be used.
To be effective, a mist eliminator must accomplish two
basic functions. First, it must have a means to capture
liquid. Second, it must be able to drain the captured liquid
without allowing re-entrainment into the gas stream.
There are two mechanisms of liquid carryover from a
mist eliminator. In the first mechanism, carryover is due to
droplets of mist which are simply not captured by the
device. The droplets might be too small to be captured or
velocities are too low, causing low efficiency for impactiontype
mist extractors. The second is reentrainment of liquid
after it has already been captured in the mist eliminator.
The majority of separator failures are caused by reentrainment.
This is the mechanism that occurs as the gas
throughput is increased beyond the tolerable limit. Gas
moving through the mist extractor exerts a drag force on
the liquid film of the mist eliminator, causing it to be pulled
toward the trailing edge of the device. If the drag is
excessive, the liquid will be torn off the element and
carried away by the gas stream. As flow rate increases,
the contact efficiency of most mist eliminators improves.
Therefore, increasing gas flow yields improved droplet
capture, but also increases re-entrainment which results in
liquid carryover and limits separation capacity.

Frequently Asked Questions

What separation mechanisms remove droplets from a gas stream?

Four mechanisms dominate: inertial impaction for droplets above roughly 10 microns, interception for droplets near the fibre size, Brownian diffusion for sub-micron particles, and direct settling in gravity sections. Each internal type relies on a different balance of these, which is why internal selection follows the droplet spectrum rather than the flow rate alone.

What is the difference between entrainment and condensation aerosol?

Entrainment is liquid lifted mechanically from a bulk liquid surface, and its droplets are usually larger than 10 microns. Condensation aerosol forms when vapour cools below its dew point, producing droplets often below one micron. A mesh pad removes the first and largely passes the second.

Why does pressure drop matter as much as efficiency?

Pressure drop sets the operating cost and, in low pressure systems, the achievable flow. It also indicates the condition of the element: a rising trend at constant flow normally means blockage or flooding, while a sudden drop can mean a mechanical failure or a broken element.

What is turndown ratio and why is it important?

Turndown is the ratio between maximum and minimum flow at which the internal still separates properly. Mesh and vane internals lose efficiency at low velocity because droplets are no longer carried to the element, while fiberbed elements are less sensitive to velocity but more sensitive to liquid loading.

What is the difference between entrainment and carryover?

Entrainment is liquid present in the gas as droplets at a given point. Carryover is entrainment that leaves the vessel or the separation stage. A separator can have entrainment internally and still have acceptable carryover, which is why the outlet measurement is the one that defines performance.

Which mechanisms actually separate droplets from gas?

Gravity settling for large droplets in a quiet zone, inertial impaction for droplets that cannot follow a turning gas path, interception and diffusion for very small particles, and coalescence that grows droplets until gravity can act on them. Industrial internals combine impaction and coalescence.

Why does droplet size distribution matter more than total liquid load?

Because separation depends on size, not mass. A small mass of sub-micron aerosol can pass an internal that removes 99 percent of a large mass of coarse droplets. Sizing from total liquid load alone, without the size distribution, produces an element that meets the mass balance and fails the outlet requirement.
